• 4-Wheel Antilock Brake Sys
• Fordpass Connect 5Gwi-Fi Hotspot Telematics Modem
• Hill Start Assist
• Jewel Effect Headlamps
• Remote Keyless Entry
• Stabilizer Bar, Front/Rear
• Sync4 W/8" Screen

• Air Cond, Manual Front
• Black Vinyl Floor Covering
• Outside Temp Display
• Particulate Air Filter
• Power Locks And Windows
• Steering:Tilt/Telescope, Cruise & Audio Controls
• Upfitter Switches

• Advancetrac With Rsc
• Airbags - Safety Canopy
• Belt-Minder Chime
• Driver/Passenger Air Bags
• Securilock Anti-Theft Sys
• Sos Post-Crash Alert Sys

640A

Power Equipment Group

XL Chrome Package

• ORDER CODE 640A

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 190
• Weight Information
• Base Curb Weight (lbs): 6960
• Base Curb Weight (lbs): 6233
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 10300
• Curb Weight - Front (lbs): 3522
• Curb Weight - Rear (lbs): 2711
• Gross Vehicle Weight Rating Cap (lbs): 14000
• Gross Combined Wt Rating (lbs): 23500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1600
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3975
• Maximum Trailering Capacity (lbs): 16000
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 10300
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 10300
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3
• Rear Brake Rotor Diam x Thickness (in): 14.3
• Tires
• Front Tire Order Code: TD8
• Rear Tire Order Code: TD8
• Front Tire Size: LT245/75SR17
• Rear Tire Size: LT245/75SR17
• Front Tire Capacity (lbs): 5820
• Rear Tire Capacity (lbs): 11640
• Revolutions/Mile @ 45 mph - Front: 649
• Revolutions/Mile @ 45 mph - Rear: 649
• Wheels
• Front Wheel Size (in): 17 X 6.5
• Rear Wheel Size (in): 17 X 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 48.6
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40
• Exterior Dimensions
• Wheelbase (in): 145
• Length, Overall (in): 230.7
• Width, Max w/o mirrors (in): 80
• Height, Overall (in): 82.2
• Overhang, Front (in): 38.3
• Overhang, Rear w/o bumper (in): 47.2
• Cab to Axle (in): 60
• Cab to End of Frame (in): 107.2
• Frame Width, Rear (in): 34.1
• Ground Clearance, Front (in): 8.3
• Ground Clearance, Rear (in): 8.3

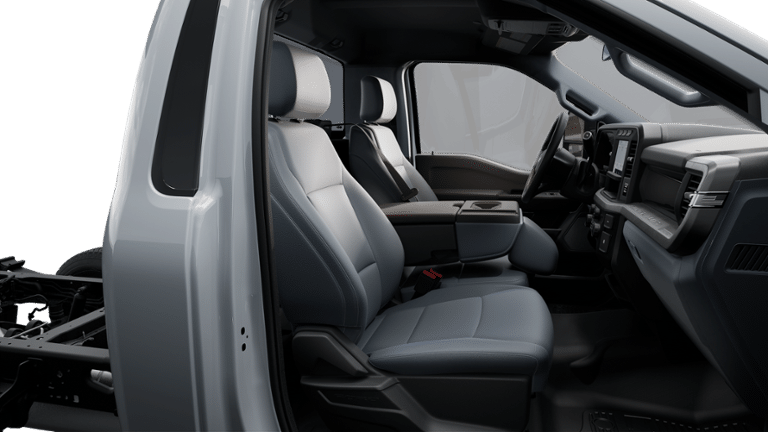

• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Summary

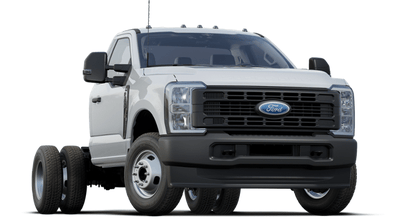

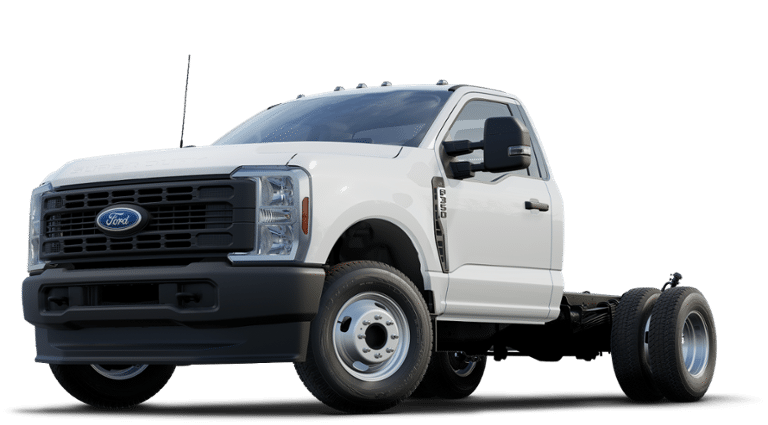

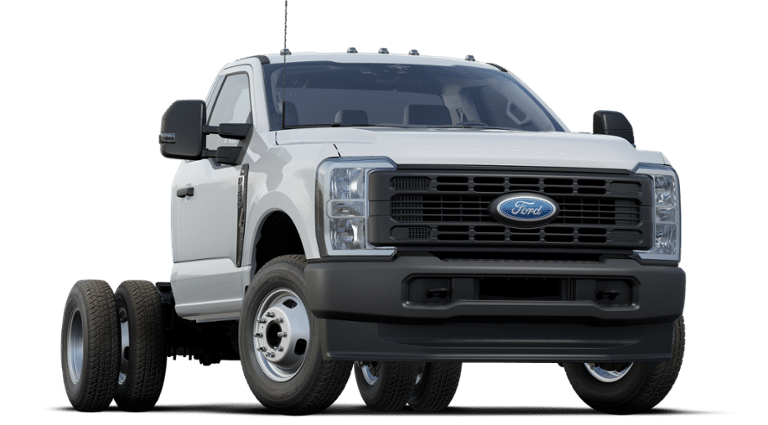

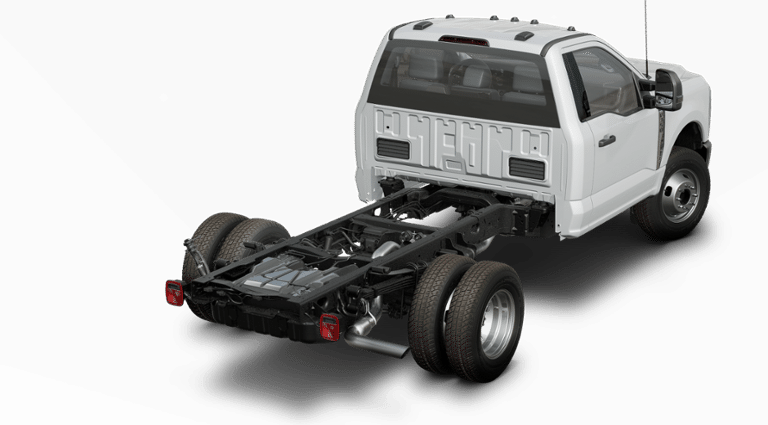

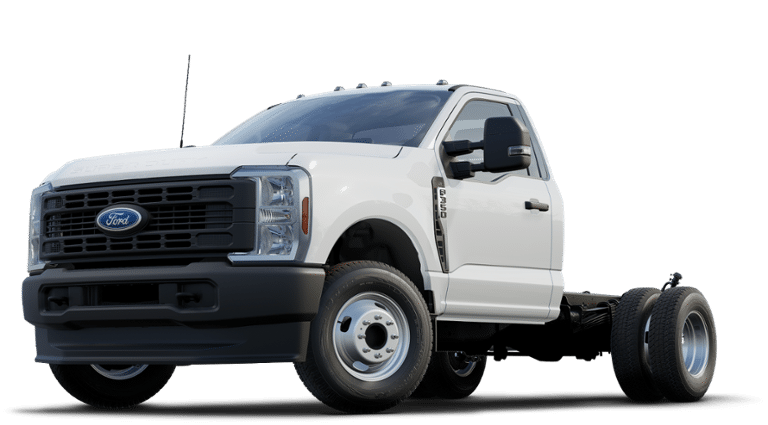

• Vehicle Name: Ford Super Duty F-350 DRW
• Body Style: SD Regular Cab
• Body Code: H
