• Am/Fm Stereo
• Auto Hold
• Blis W/Cross-Traffic Alert
• Class Iv Trailer Hitch W/ Smart Trlr Tow Connector
• Curve Control
• Fordpass Connect 5Gwi-Fi Hotspot Telematics Modem
• Lane-Keeping System
• Post-Collision Braking
• Pre-Collision Assist W/Aeb
• Reverse Sensing And Rear View Camera
• Selectable Drive Modes

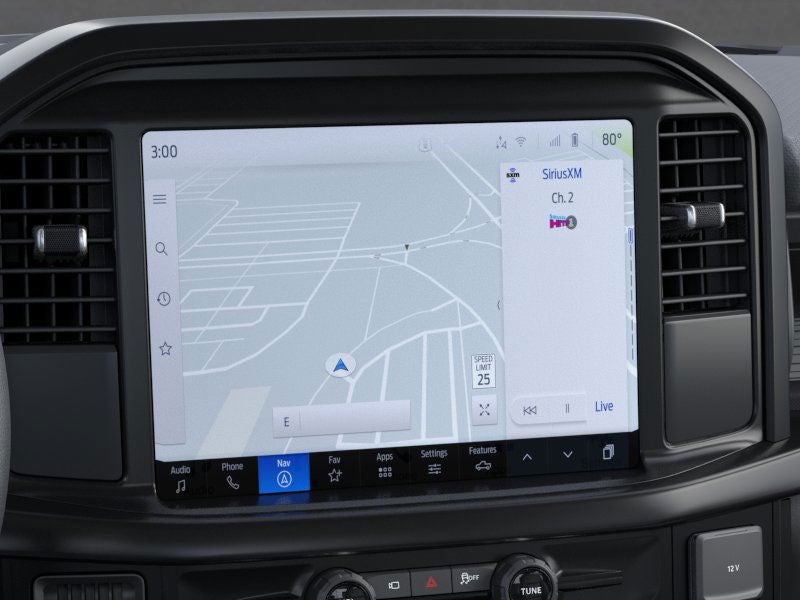

• Sync4 W/Evr & 12" Screen

• Cruise Control
• Door Locks - Power
• Dual Sunvisors
• Illuminated Entry
• Message Ctr: Outside Temp, Compass, Trip Computer
• Tilt/Telescope Str Column

• Advancetrac With Rsc
• Airbags - Front Seat Mounted Side Impact
• Airbags - Safety Canopy
• Ctr High Mount Stop Lamp
• Perimeter Alarm
• Secure Pkg 1 Yr Included
• Sos Post-Crash Alert Sys
• Tire Pressure Monit Sys

STX® (200A)

STX 2.7L V6 EcoBoost® Engine Discount

Mobile Office Package

STX® (200A) Discount

• Mileage
• Fuel Economy Est-Combined (MPG): 22 (2024)
• EPA Fuel Economy Est - City (MPG): 20 (2024)
• EPA Fuel Economy Est - Hwy (MPG): 26 (2024)
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 760
• Cold Cranking Amps @ 0° F (2nd): 760
• Maximum Alternator Capacity (amps): 200
• Weight Information
• Base Curb Weight (lbs): 4687
• Gross Axle Wt Rating - Front (lbs): 3375
• Gross Axle Wt Rating - Rear (lbs): 3400
• Curb Weight - Front (lbs): 2696
• Curb Weight - Rear (lbs): 1991
• Gross Vehicle Weight Rating Cap (lbs): 6426
• Gross Combined Wt Rating (lbs): 12800
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7600
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 760
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 7400
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1850
• Maximum Trailering Capacity (lbs): 7600
• Suspension
• Suspension Type - Front: Double Wishbone
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 3375
• Spring Capacity - Rear (lbs): 3500
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 4050
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Rear: 3.55
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8
• Rear Brake Rotor Diam x Thickness (in): 13.2
• Tires
• Front Tire Size: P265/60SR18
• Rear Tire Size: P265/60SR18
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 4050
• Rear Tire Capacity (lbs): 4150

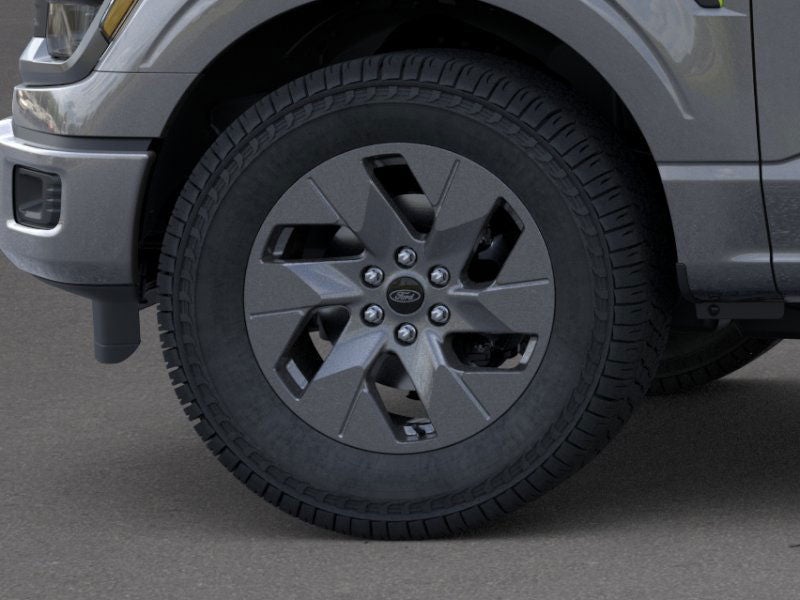

• Wheels
• Front Wheel Size (in): 18 X 7.5
• Rear Wheel Size (in): 18 X 7.5
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 47.8
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Exterior Dimensions
• Wheelbase (in): 145
• Length, Overall (in): 231.7
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 75.6
• Overhang, Front (in): 37.6
• Ground to Top of Load Floor (in): 32.9
• Ground Clearance, Front (in): 8.5
• Ground Clearance, Rear (in): 8.5
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 66
• Cargo Box Width @ Top, Rear (in): 65.2
• Cargo Box Width @ Floor (in): 65.2
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.4
• Tailgate Width (in): 60.3
• Cargo Volume (ft³): 52.8
• Interior Dimensions

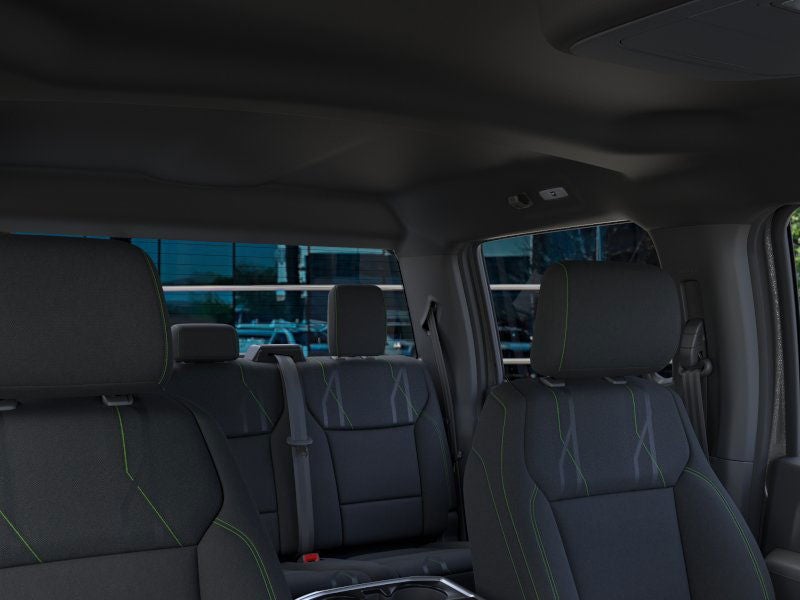

• Passenger Capacity: 5
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.4
• Second Leg Room (in): 43.6
• Second Shoulder Room (in): 66
• Second Hip Room (in): 62.6
• Summary

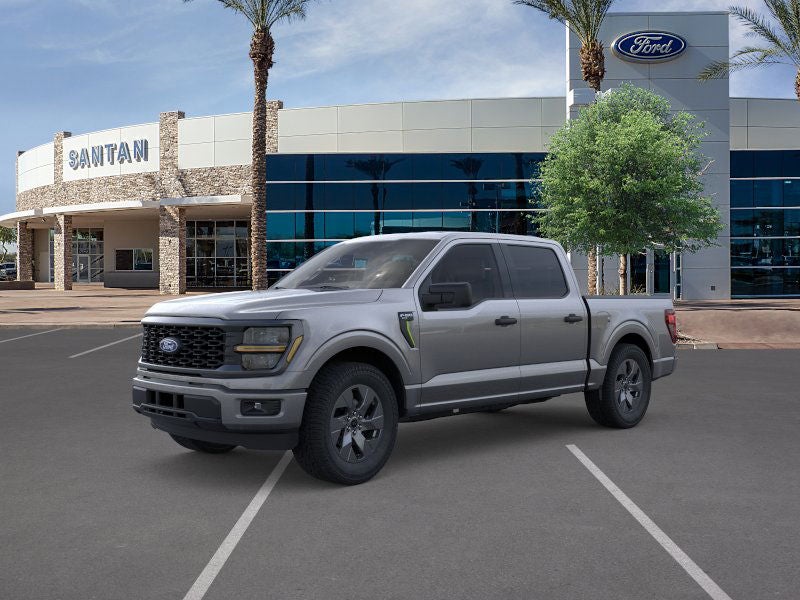

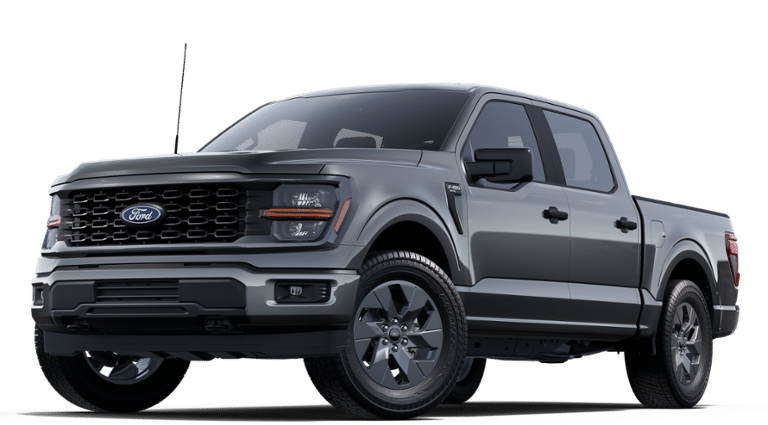

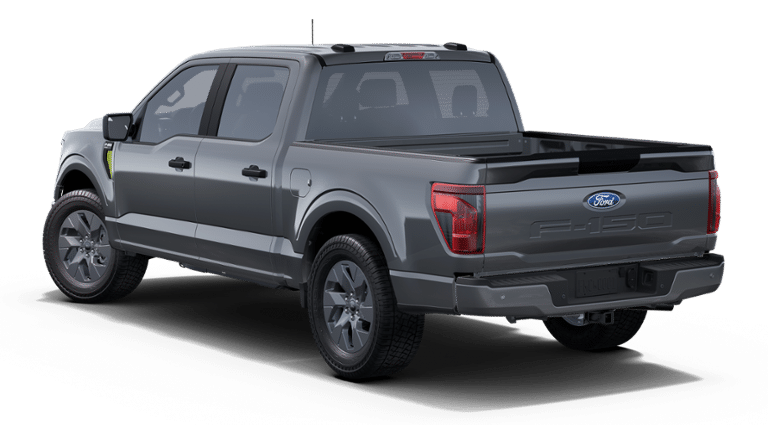

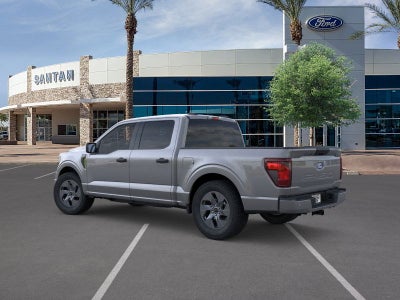

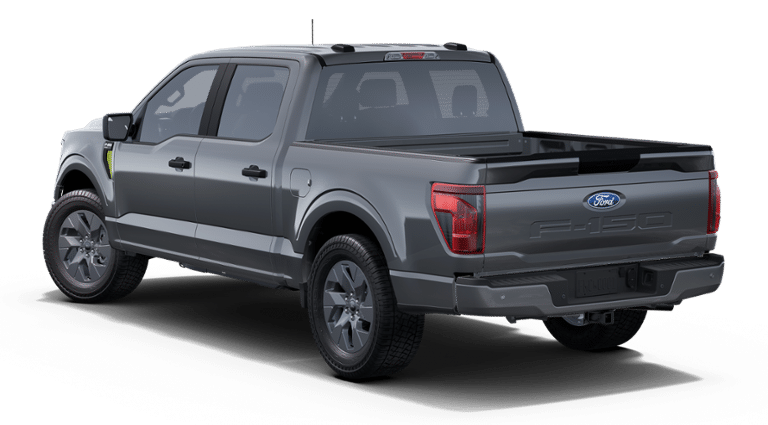

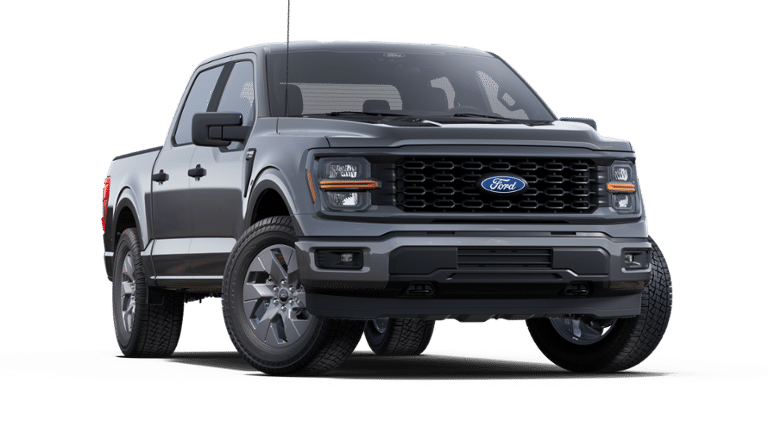

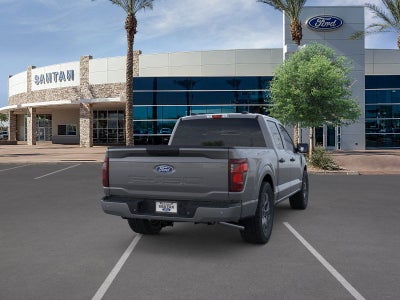

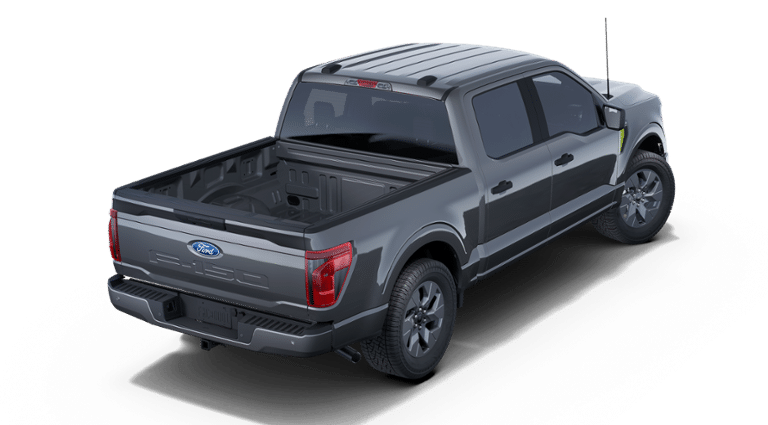

• Vehicle Name: Ford F-150
• Body Style: SuperCrew Cab
• Body Code: T
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.1 (2024)
