• Auto High-Beam Headlamps
• Electronic Pwr Asst Steer
• Forward Collision Warning
• Hill Start Assist
• Lane-Keeping System
• Post-Collision Braking
• Pre-Collision Assist W/Aeb
• Rear View Camera W/ Trailer Hitch Assist
• Selectable Drive Modes
• Side-Wind Stabilization

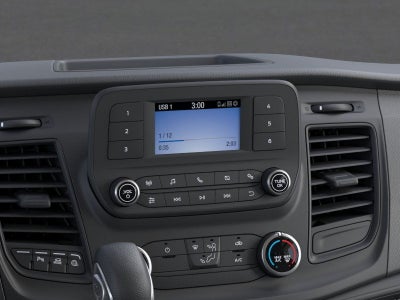

• Air Conditioning
• Assist Handle - B-Pillar
• Assist Handles - A-Pillar
• Center Console
• Interior Lighting - Led
• Locking Glove Box

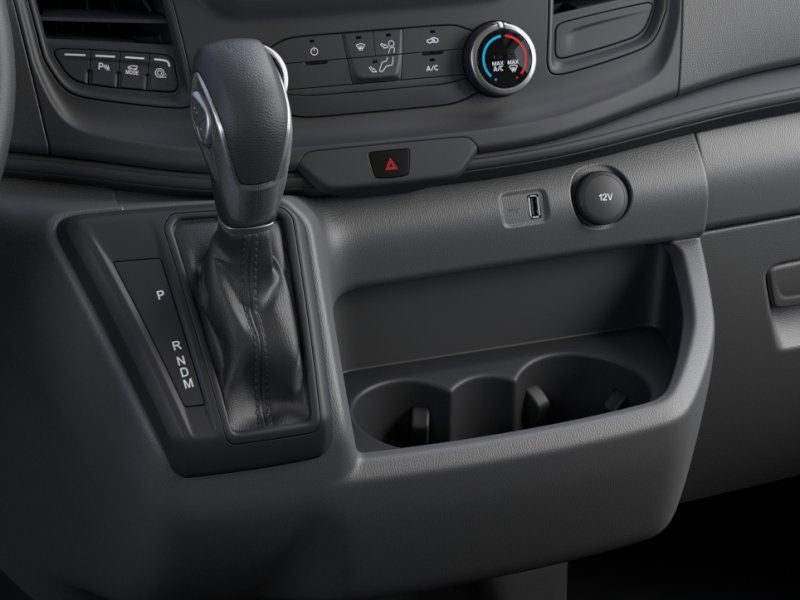

• Powerpoint - 12V (Front)

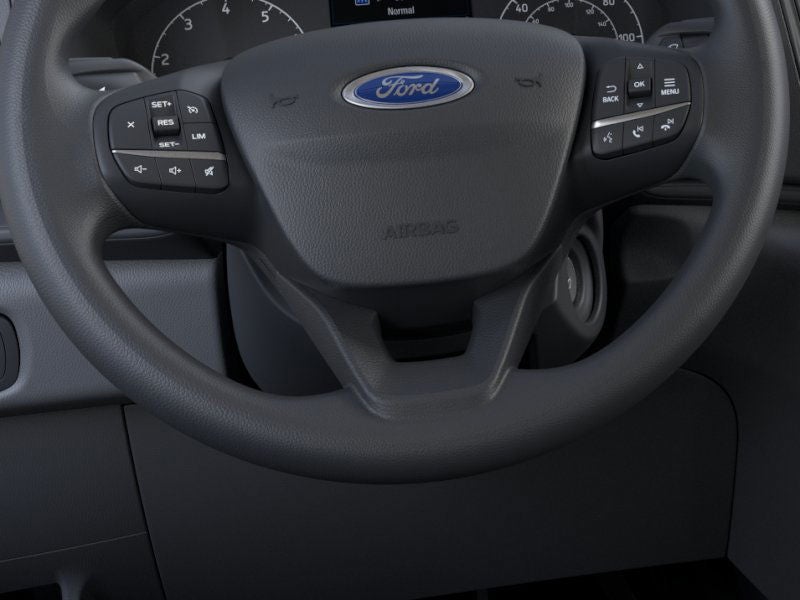

• Steering - Tilt/Telescopic
• Tachometer

• 3 Point Safety Belts
• Advancetrac With Rsc
• Airbags – Front, Side And Safety Canopy System
• Brakes - 4Wheel Disc W/Abs
• Securilock Anti-Theft Sys
• Sos Post-Crash Alert Sys
• Tire Pressure Monit Sys

Heavy-Duty Trailer Tow Package

Cargo Van (101A)

• ORDER CODE 101A

• Vehicle

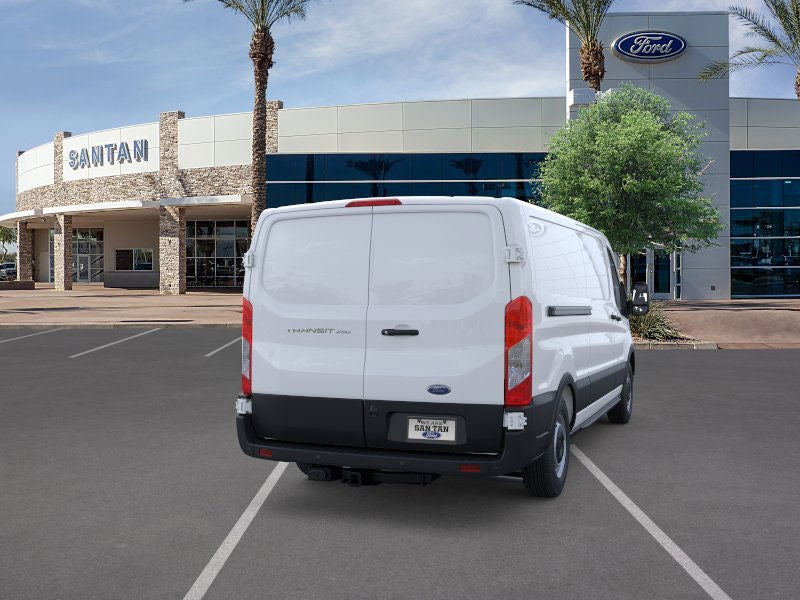

• Rear Door Type: Split Swing-Out
• Mileage
• Fuel Economy Est-Combined (MPG): - TBD -
• EPA Fuel Economy Est - City (MPG): - TBD -
• EPA Fuel Economy Est - Hwy (MPG): - TBD -
• Electrical
• Maximum Alternator Capacity (amps): 250
• Weight Information
• Base Curb Weight (lbs): 4985
• Gross Axle Wt Rating - Front (lbs): 4130
• Gross Axle Wt Rating - Rear (lbs): 5515
• Curb Weight - Front (lbs): 2923
• Curb Weight - Rear (lbs): 2062
• Gross Vehicle Weight Rating Cap (lbs): 9150
• Gross Combined Wt Rating (lbs): 10800
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 520
• Maximum Trailering Capacity (lbs): 5200
• Suspension
• Suspension Type - Front: Strut
• Suspension Type - Rear: Leaf
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.1
• Rear Brake Rotor Diam x Thickness (in): 12.1
• Tires
• Front Tire Size: LT235/65SR16
• Rear Tire Size: LT235/65SR16
• Spare Tire Size: Full-Size
• Revolutions/Mile @ 45 mph - Front: 720
• Revolutions/Mile @ 45 mph - Rear: 720

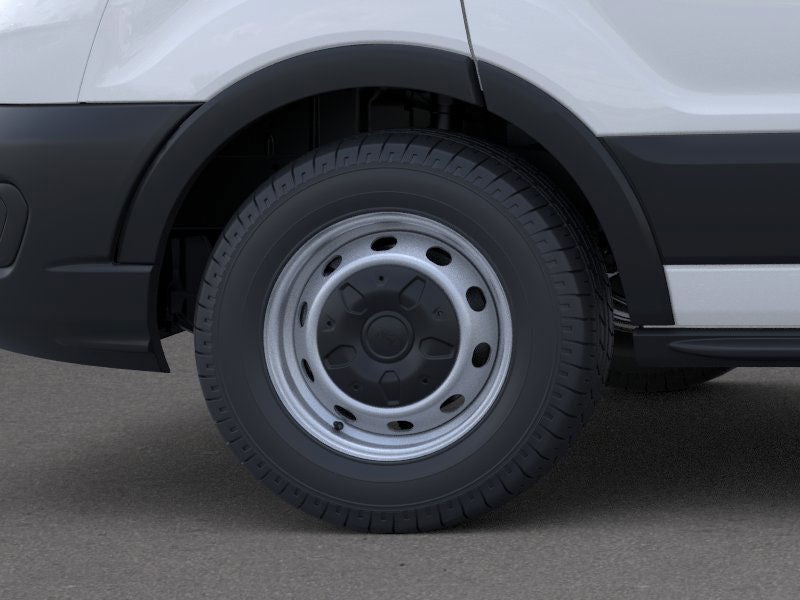

• Wheels
• Front Wheel Size (in): 16 X 6.5
• Rear Wheel Size (in): 16 X 6.5
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 42.9
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 25.1
• Doors
• Side Door Type: Sliding
• Exterior Dimensions
• Wheelbase (in): 130
• Length, Overall (in): 219.9
• Width, Max w/o mirrors (in): 81.3
• Height, Overall (in): 82.2
• Overhang, Front (in): 40.3
• Ground to Top of Load Floor (in): 28.9

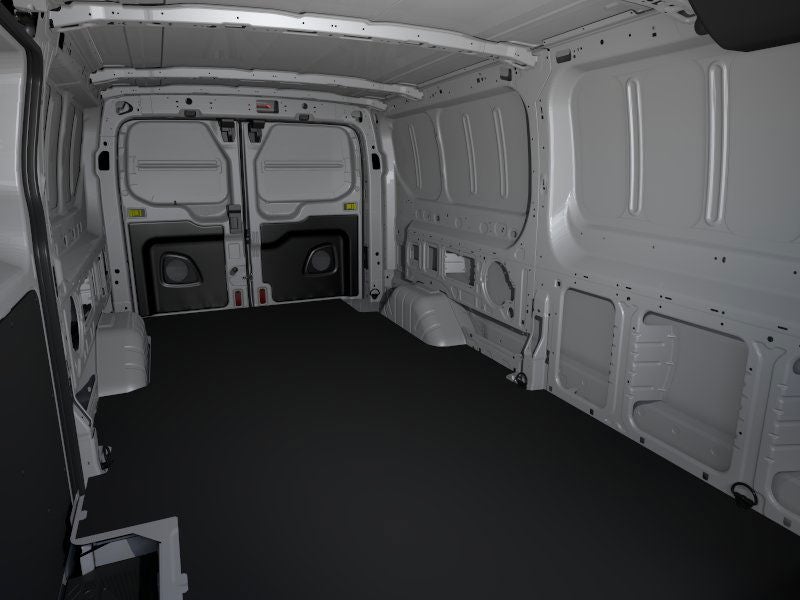

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 126
• Cargo Area Width @ Beltline (in): 70.2
• Cargo Box Width @ Wheelhousings (in): 54.8
• Cargo Box (Area) Height (in): 56.9

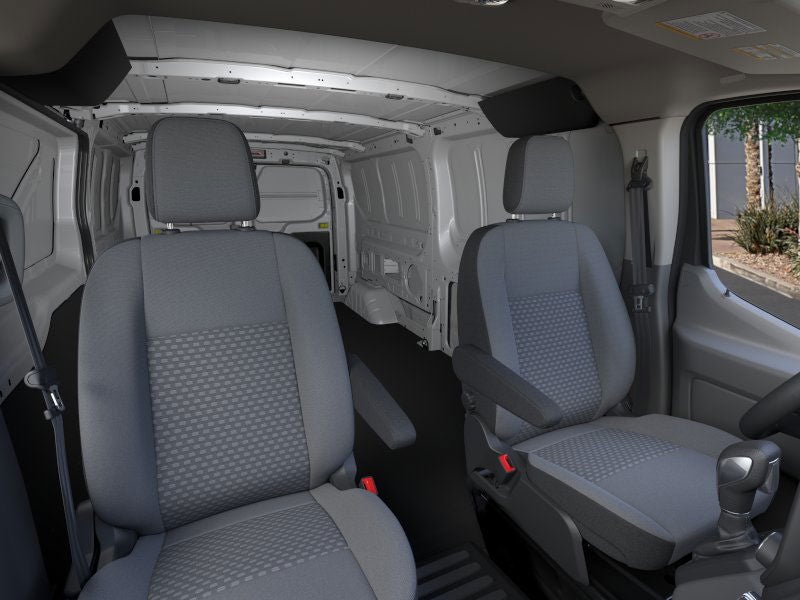

• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 40.8
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 67.9
• Front Hip Room (in): 60.7
• Summary

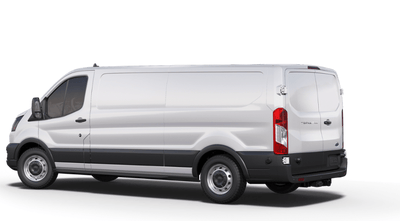

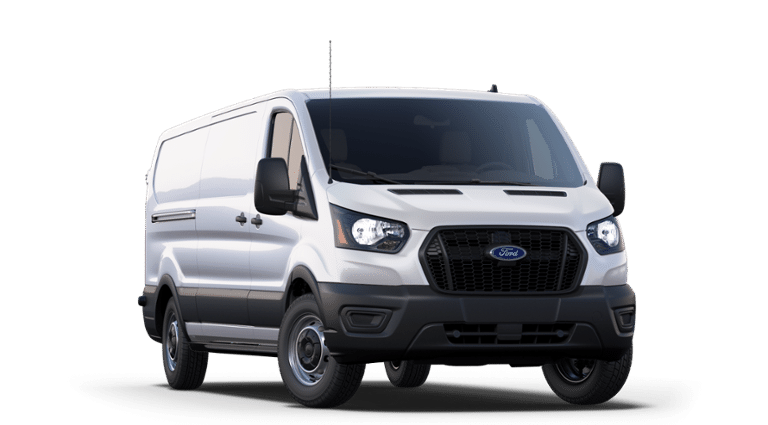

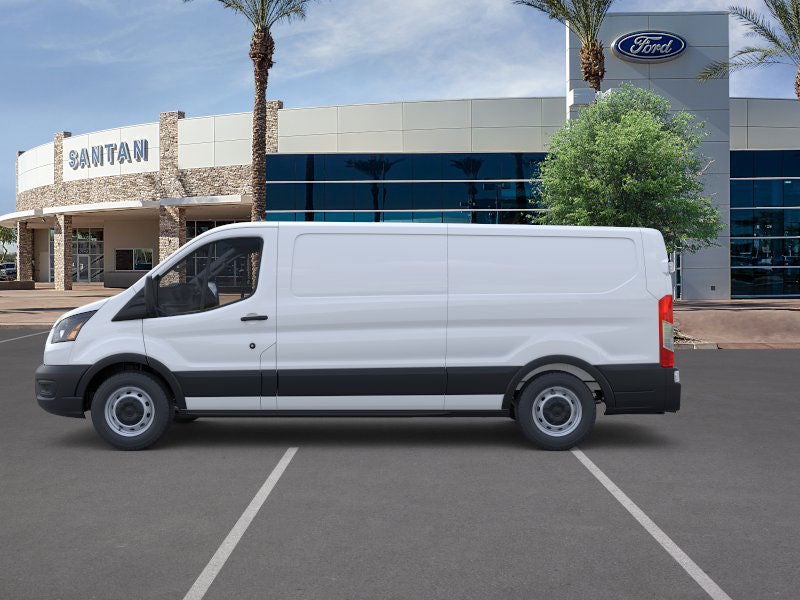

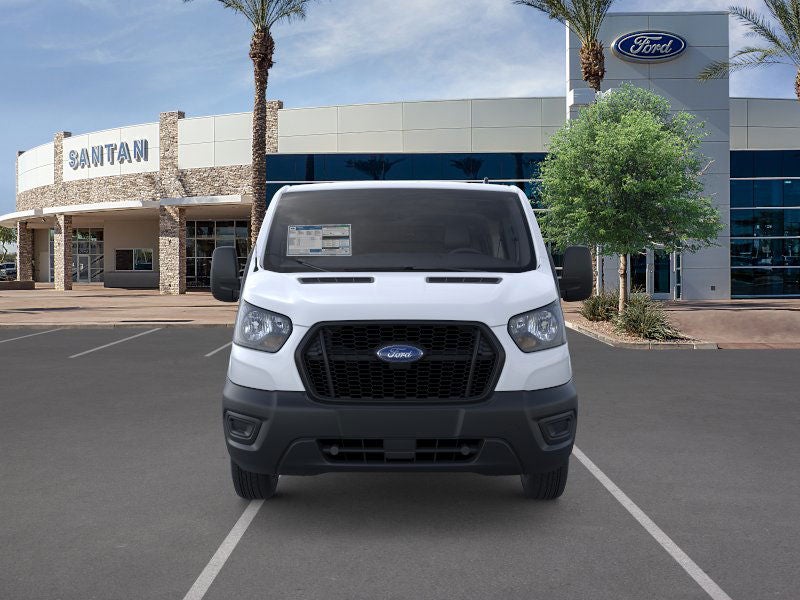

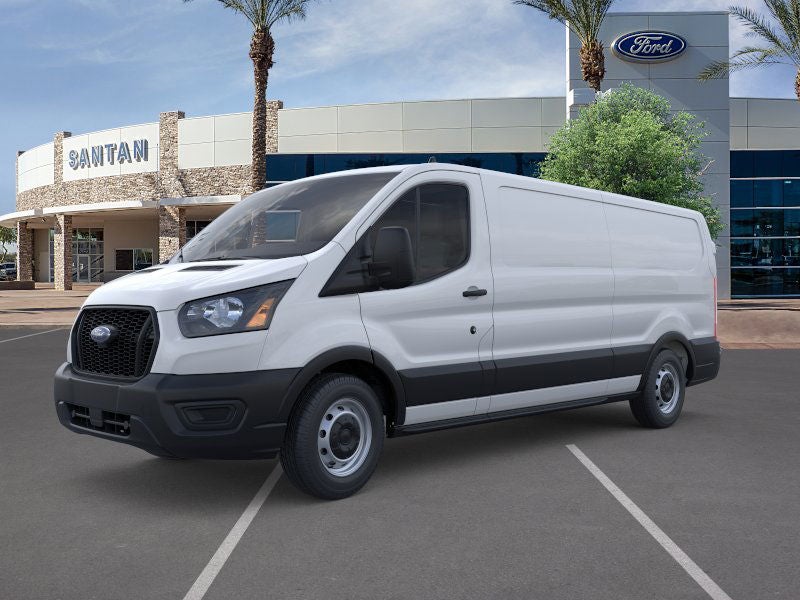

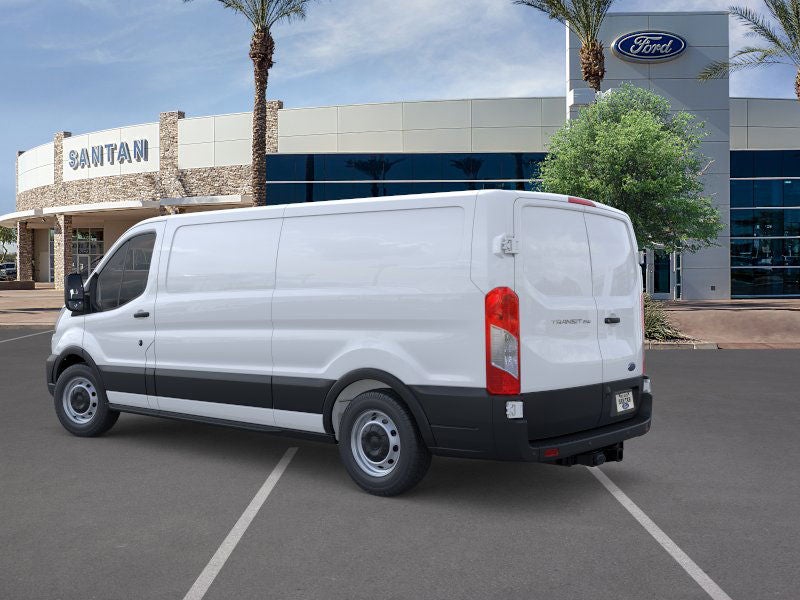

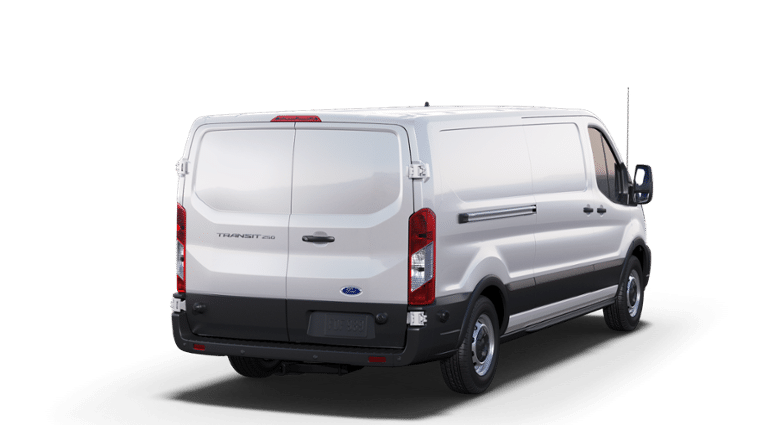

• Vehicle Name: Ford Transit Cargo Van
• Body Style: Low Roof Van
• Body Code: V
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
